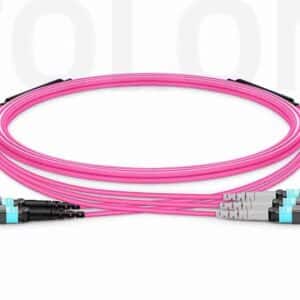

1 m OM4 24‑Fiber MTP®‑24 to 2×MTP®‑12 Breakout Cable Plenum Rated, Type A
Product Features
• Dual‑output breakout design splits a 24‑fiber trunk into two 12‑fiber paths for flexible connectivity
• OM4 multimode fiber provides sufficient bandwidth for high‑speed data center and aggregation links
• Factory termination and testing ensure reliable, consistent optical performance and reduced on‑site work
• Plenum OFNP jacket allows installation in air‑handling spaces with fire safety requirements
• Type A polarity configuration aligns transmit and receive mapping predictably across structured networks
• UPC polished MTP® connectors deliver stable multimode signal transmission
• Compact, high‑density form factor simplifies cable routing and management in racks and panels
1. Product Description
This OM4 multimode breakout cable provides a flexible way to adapt a high‑fiber backbone into two smaller modular links. It features a single MTP®‑24 UPC female connector that splits into two MTP®‑12 UPC female connectors, delivering a total of 24 multimode fiber strands configured for Type A polarity. The cable uses OM4 50/125 µm multimode fiber, engineered for high‑speed short reach networks, and is factory terminated and tested to guarantee consistent low loss performance from the start.
Its plenum‑rated OFNP jacket enables safe installation in ceilings and air‑handling pathways where fire safety regulations apply. The push‑pull style MTP® connectors provide simplified mating and demating for dense cabling environments, reducing installation time and minimizing network errors.
2. Product Use Cases
• Converting a high‑count MTP® trunk into two 12‑fiber links for patch panel or cassette integration
• Parallel multimode optics connectivity in data center environments supporting 40 G and 100 G rates
• High‑density backbone cabling between racks and distribution points
• Quick deployment projects where pre‑tested assemblies reduce field labor and errors
• Safe routing through plenum spaces and ceilings requiring OFNP fire‑rated cables
• Structured cabling for enterprise LAN or campus fiber infrastructure
3. Product Specifications
| Attribute | Specification |
|---|---|
| Model / SKU | 165849 |
| Cable Type | Pre‑terminated breakout fiber cable |
| Fiber Mode | OM4 multimode 50/125 µm |
| Total Fiber Count | 24 fibers |
| Trunk Connector | MTP®‑24 UPC female |
| Breakout Connectors | 2 × MTP®‑12 UPC female |
| Polarity | Type A (factory wired) |
| Typical Insertion Loss | ≤ 0.35 dB per connector (typical low‑loss performance) |
| Typical Return Loss | UPC multimode standard |
| Jacket Type | Plenum rated OFNP (air‑handling compliant) |
| Jacket Color | Magenta (OM4 multimode standard) |
| Cable Diameter | Approx. 3.0 mm |
| Minimum Bend Radius | ~7.5 mm |
| Operating Temp | Standard indoor fiber temperature range |
| Storage Temp | Industry standard storage range |
| Compatibility | MPO/MTP structured cabling and parallel optics modules |
