If you are designing a high-density 40G or 100G network, you have likely encountered a confusing choice: Should you specify the premium “MTP fiber connector” or the standard MPO?
Your distributor probably pushes the MTP Fiber Connector as the superior, “must-have” solution—often with a huge markup. But is it really different? Or is “MTP” just a fancy brand name for the same plastic part?
In this guide, we break down the engineering differences, reveal the real factory price gap ($1.43 vs $6.35), and help you decide if the premium connector is worth the extra cost.

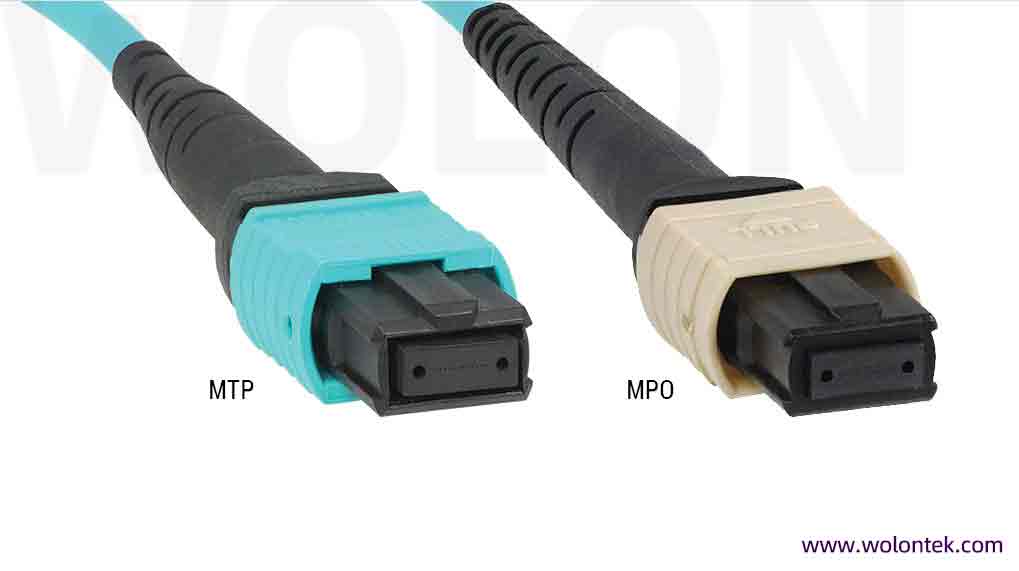

What is an MTP Fiber Connector?
First, let’s clear up the definition.
-
MPO (Multi-Fiber Push On): This is the generic interface standard (IEC-61754-7). Think of it like saying “Tissue.”
-
MTP Fiber Connector: This is the premium brand name version manufactured by US Conec. Think of it like saying “Kleenex.”
The bottom line: Every MTP fiber connector is an MPO, but not every MPO is an MTP. The US Conec version is fully compliant with all MPO standards but is engineered with tighter tolerances and better materials.
MTP Fiber Connector vs MPO Fiber Connector: 3 Key Upgrades
Why does US Conec charge more? It’s not just marketing. The MTP fiber connector solves three specific physical problems found in cheap generic MPO parts:
-
The Floating Ferrule: The MTP ferrule “floats” inside the housing. This ensures physical Contact is maintained even if the cable is pulled or bent under load. Standard MPO connectors are often rigid, leading to signal loss when the cable moves.
-
Elliptical Guide Pins (Stainless Steel): Generic MPO pins often have sharp edges that can chip the delicate fiber holes after multiple plug-ins. The MTP fiber connector uses rounded (elliptical) pins to reduce wear.
-
Benefit: Rated for 500+ matings (vs. ~200 for standard).
-
-
Removable Housing: You can easily disassemble an MTP fiber connector to change the Polarity or Gender (Male/Female) in the field. Try doing that with a generic MPO—you will likely snap the plastic tabs.
Want the Deep Technical Dive? In this price guide, we focus on the cost . But if you want to see the specific engineering diagrams, comparing the elliptical guide pins and floating ferrules in detail, we have a dedicated article for that.
Read our Tech Comparison: [MPO vs. MTP connectors: What is the Difference?]
The Price Reality: How Much Does an MTP Connector Cost?
This is the section distributors hide. They might charge you $50 extra for a cable just because it says “MTP.”
But what is the actual hardware cost difference?
Let’s look at the Real Factory Cost based on our 2026 component pricing.
Cost Breakdown: Generic vs US Conec (Multimode)
Factory Insider: MPO vs. MTP® Component Cost
| Component Spec | Generic MPO Connector Standard Option |
US Conec MTP® Premium Option |
The Real Cost Gap |
|---|---|---|---|
| Head Cost (Per Pc) | $1.43 (Domestic Cost: ¥9.00) | $6.35 (Import Cost: ¥40.00) | +$4.92 / end |
| Origin | China Domestic | USA (North Carolina) | Import Tax Included |
| Durability | Standard | Elite (High Precision) | Pays for itself |
| IMPACT ON CABLE (For 1 Trunk = 2 Ends) |
$2.86 cost | $12.70 cost | Only +$10.00 |
The “Anti-Markup” Promise:
If a supplier tries to charge you $100 more just for the “MTP Version,” they are marking it up excessively.
At Wolontek, we are transparent. We simply pass on the hardware cost difference (approx. $10 – $12 per cable). You pay for the performance, not the label.
Get a Quote: Standard vs. MTP Pricing ➤
When Should You Buy the MTP Fiber Connector?
You don’t need the premium connector for every single link. Use this decision matrix to save money without sacrificing performance.
✅ Buy MTP Fiber Connector If…
-
You run 400G/800G Networks: The insertion loss budgets are extremely tight. You need the precision of US Conec Elite parts.
-
You connect to expensive optics: Don’t risk damaging a $2,000 Qsfp-DD transceiver port with a cheap, sharp-pinned connector.
-
High-Frequency Patching: If you plan to unplug and replug the cable often (e.g., in a test lab), the durability of the MTP fiber connector is mandatory.
❌ Buy Standard MPO If…
-
Static Connections: Once plugged in, it will stay there for 5 years (e.g., permanent trunk lines between racks).
-
Cost-Sensitive Projects: If you are an ISP deploying FTTH or connecting basic 10G servers, a high-quality Standard MPO works perfectly and saves you 30% on the BOM.
Conclusion: Get Genuine MTP at Factory Prices
Don’t let the “Brand Name” debate confuse you.
-
MTP Fiber Connector = Best for performance and durability.
-
MPO Connector = Best for budget and static use.
The secret is buying from a factory that offers Transparent Pricing. At Wolon, we list separate prices for Domestic MPO and US Conec MTP connectors. You choose the performance level that fits your budget.
Stop Paying the “MTP Tax”.
You’ve seen the factory math. Upgrading to genuine US Conec MTP® should only cost you ~$12 extra per cable, not $100.
Get the performance you want, at the hardware cost you deserve.
We quote both Standard MPO and US Conec MTP side-by-side.
FAQ: MTP Fiber Connectors & Ordering
Q1: Is an MTP fiber connector compatible with a standard MPO connector?
A: Yes, 100%. “MTP” is just a brand name for a high-performance MPO connector. They share the exact same form factor (IEC standard). You can plug a Wolontek MTP trunk cable into a Cisco MPO transceiver or a generic MPO cassette without any physical issues.
Q2: How do I know if I am getting a genuine US Conec MTP connector?
A: Look at the housing. Genuine MTP fiber connectors usually have the “US Conec” logo or “MTP®” stamped visibly on the plastic connector body. At Wolontek, we purchase our components directly from US Conec distributors and can provide the original Certificate of Compliance (CoC) upon request.
Q3: Do I really need MTP connectors for 10G or 40G networks?
A: Not necessarily.
For 10G/40G (SR4), a high-quality Standard MPO is often sufficient and saves money.
For 100G/400G/800G, we strictly recommend MTP Elite connectors because the optical loss budget is extremely tight, and the precision of the MTP ferrule is required to ensure the link comes up.
Q4: Can I change the polarity of your MTP cables in the field?
A: Yes, if you choose the MTP® PRO connector option. One of the biggest advantages of the modern MTP design is the removable housing. With a simple tool, you can change the gender (Male/Female) or Polarity (Type A/B) in under a minute without opening the connector body. Standard MPO connectors typically do not support this.
Q5: Why is your MTP pricing lower than my local distributor?
A: We cut out the middleman. Distributors often mark up the “MTP” brand by 50-100%. As a factory, we calculate the price based on Component Cost + Labor. Since we buy US Conec parts in bulk, we simply pass the hardware cost (approx. $6.35) to you without adding a massive “Brand Tax.”
