Nobody wants to rip and replace their physical layer every time network speeds bump up. When you are managing a hyperscale facility or a dense SAN environment, your core cabling needs to handle bandwidth migrations gracefully. You lay it down once, and it stays there.
That’s exactly what the MPO trunk cable does. Think of it as the permanent fiber highway of your data center. You aren’t just plugging in a short patch cord between two switches. Trunks are massive, high-fiber-count assemblies that get dragged through overhead trays and routed under raised floors, connecting your Main Distribution Area (MDA) directly to the equipment rows (EDA).
But getting this backbone right is unforgiving. Order the wrong polarity, mess up the Base-8 fiber count, or specify a jacket that fails local fire codes, and your entire facility rollout hits a brick wall. Let’s walk through the actual procurement specs you need to get a 400G-ready MPO trunk deployed without the headaches.
1. Ditch Base-12: The Shift to Base-8 Architecture
For years, Base-12 was the default standard. But if you are rolling out 400GBASE-SR4 or DR4 transceivers, standardizing on a 12-fiber trunk is a massive waste of capital.
These modern optical modules use exactly 8 fibers per lane. If you plug a Base-12 assembly into that ecosystem, four strands of glass just sit there doing absolutely nothing. To maximize your rack density, modern trunks need to be built on a strict Base-8 foundation. We typically see architects deploying 48-fiber, 72-fiber, or 144-fiber micro-core trunks. Breaking these down into LC duplex ports or feeding them straight into QSFP-DD optics ensures 100% active glass. No dark fiber, no wasted budget.
2. OFNP vs LSZH: Don’t Fail Your Fire Inspection
Optical performance doesn’t matter at all if a building inspector red-tags your facility. Because trunk cables snake through multiple building zones, getting the jacket fire rating wrong is a catastrophic, multi-million-dollar mistake.
- North American Deployments: If you are running cables through environmental air-handling spaces, you absolutely need OFNP (Plenum) jackets. They violently resist flame spread and self-extinguish.
- European & Underground Deployments: Building in the EU? You must specify LSZH (Low Smoke Zero Halogen) to meet strict CPR regulations. Unlike standard PVC, LSZH won’t choke the server room with toxic, corrosive halogen gas if things get dangerously hot.
3. PAM4 Budgets and 3D Interferometer Hard Truths
Here is the harsh reality of 400G and 800G networks running PAM4 modulation: your insertion loss (IL) budget is brutally small. An MPO trunk might span 100 meters, making it the longest physical segment in your channel.
If you rely on standard-grade MPO ferrules, you are easily eating >0.60 dB of loss right off the bat. That simply won’t fly. Your procurement specs need to aggressively demand Elite-grade MT ferrules (like genuine US Conec MTP® components). You want that IL strictly capped at 0.35 dB per mated pair.
But don’t just take a supplier’s word for it. Demand the 3D geometry reports. Every single trunk should be verified by an interferometer to check the core dip, fiber protrusion, and minus-side coplanarity against IEC 61755-3-31 standards. If the physical end-face geometry is off, your link drops packets. It is really that simple.
4. Stop Paying Middlemen for Sub-Par Trunks
Dragging high-core-count trunks through a data hall requires precise lengths and ruggedized pulling eyes. Trying to make generic, off-the-shelf distributor inventory work usually results in massive cable slack and a miserable rack management experience.

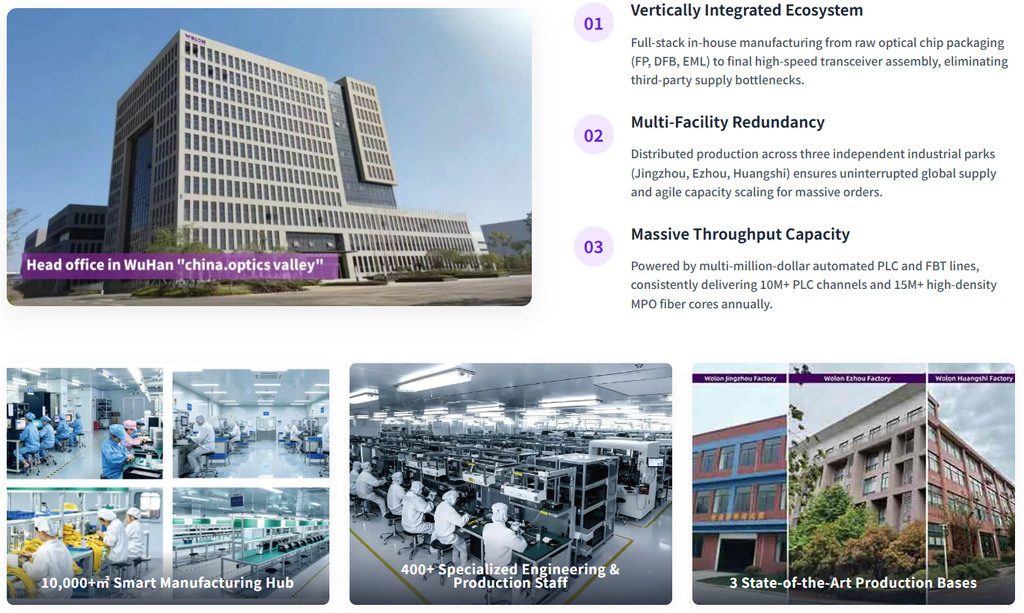

Enterprise architects are catching on. By bypassing the distribution layers and going straight to the factory, you take total control of your BOM. Operating right out of Wuhan Optical Valley, our team of around 450 optical specialists custom-builds MPO trunks to fit your exact floor plan. Need specific staggered breakout legs? We do that. Require strict Type B polarities with full 3D testing documentation? Done. We build, test, and ship these low-loss backbones globally in just 7 to 10 days.
