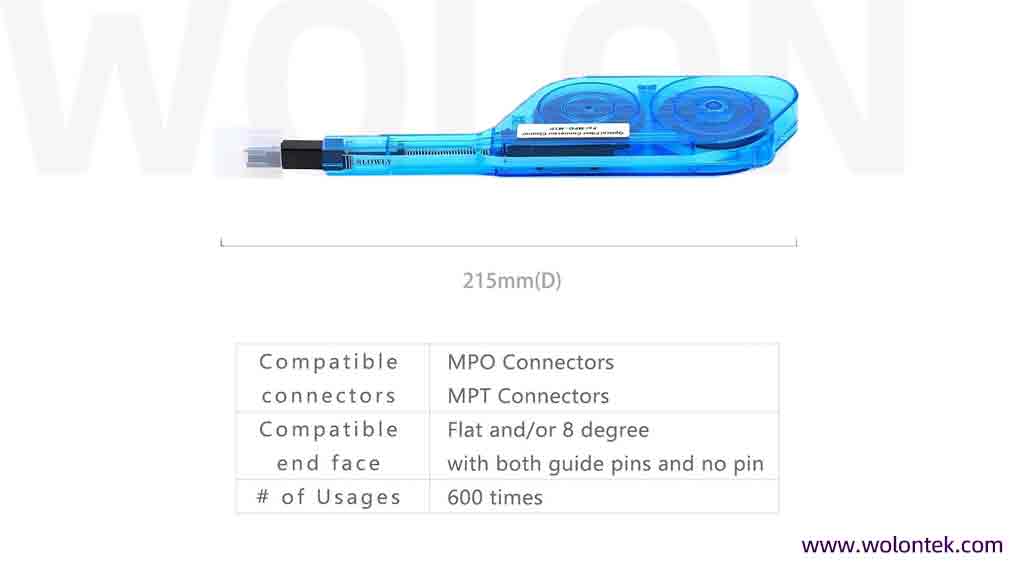

One-Click MTP/MPO Cleaner Pen, 600+ Cleans
-
Essential Network Protection: Instantly removes dust, oil, and debris from MPO/MTP end-faces, preventing severe insertion loss and costly network downtime.
-
Universal Compatibility: Expertly designed to clean both Female (unpinned) and Male (pinned) MPO/MTP connectors, as well as transceivers and adapters directly in the patch panel.
-
High-Yield Efficiency: Provides over 600 reliable cleaning cycles per pen, utilizing an ultra-pure micro-woven cleaning ribbon that leaves zero residue.
-
Foolproof Operation: Features an intuitive “push-to-clean” mechanism with an audible ‘click’ to alert the technician that a full cleaning cycle is complete.
-
Global Manufacturing Standard: Produced in Wolon’s expansive manufacturing base in Wuhan, China. Spanning three dedicated factories, we supply premium optical accessories to telecommunications providers across more than 80 countries.
Product Overview Contaminated connector end-faces are the leading cause of optical network failures, especially in high-density MPO/MTP environments where a single speck of dust can disrupt multiple 10G, 40G, or 100G channels. The Wolon One-Click MTP/MPO Cleaner Pen is an indispensable maintenance tool for every network technician. Designed for efficiency and ease of use, it utilizes a dry, anti-static micro-woven fabric ribbon to sweep away contaminants without the need for messy isopropyl alcohol.
Whether you are cleaning bare MTP cables before installation or reaching deep into high-density adapter panels to clean active transceiver ports, this ergonomic tool delivers pristine results. With a single pushing motion, the nozzle advances the cleaning thread, sweeping the 12-fiber or 24-fiber array flawlessly. Capable of over 600 cleans per unit, it is a highly cost-effective insurance policy for your critical optical infrastructure.
Key Features
-
Anti-Static Design: Constructed from specialized anti-static resin to prevent secondary dust attraction to the ferrule after cleaning.
-
Nozzle Extension: Easily reaches deeply recessed MPO/MTP ports inside crowded high-density patch panels and cassettes.
-
Dry Cleaning Technology: Eliminates the risk of liquid residue drying on the glass core, a common issue with traditional wet-cleaning methods.
-
Cost-Effective Maintenance: A single pen protects hundreds of expensive optical links, extending the lifespan of your MTP/MPO cables and hardware.
Technical Specifications
| Specification | Details |
|---|---|
| Compatible Connectors | MPO and MTP® (Base-8, Base-12, Base-24) |
| Connector Gender | Cleans both Female (No Pins) and Male (With Pins) |
| Cleaning Cycles | > 600 Cleans per Pen |
| Cleaning Method | Dry Cleaning (Micro-woven fabric thread) |
| Target Contaminants | Dust, lint, skin oil, saltwater residue, alcohol residue |
| Material | Anti-static Resin |
Application Scenarios
-
Data Center Installation: Mandatory end-face cleaning before mating any MTP/MPO trunk cables to cassettes or transceivers.
-
Troubleshooting: Rapidly resolving high Insertion Loss (IL) or low Return Loss (RL) issues caused by dirty connections in active racks.
-
Transceiver Maintenance: Safely cleaning the internal MPO/MTP ports of expensive QSFP+, QSFP28, and QSFP-DD optics.
