High-Performance Fiber Optic Pigtails & Custom Assemblies
Factory-Terminated Solutions for Seamless Fusion Splicing
Ensure reliable and low-loss terminations for your optical distribution networks with WolonFiber’s premium pigtail solutions. Manufactured in our Wuhan-based facilities by a dedicated team of over 400 optical specialists, our fiber optic pigtails are engineered for optimal fusion splicing. From high-density 12-fiber color-coded sets and standard simplex connections to fully bespoke OEM configurations, every pigtail undergoes strict 3D interferometry and insertion loss testing to guarantee flawless plug-and-play interoperability.

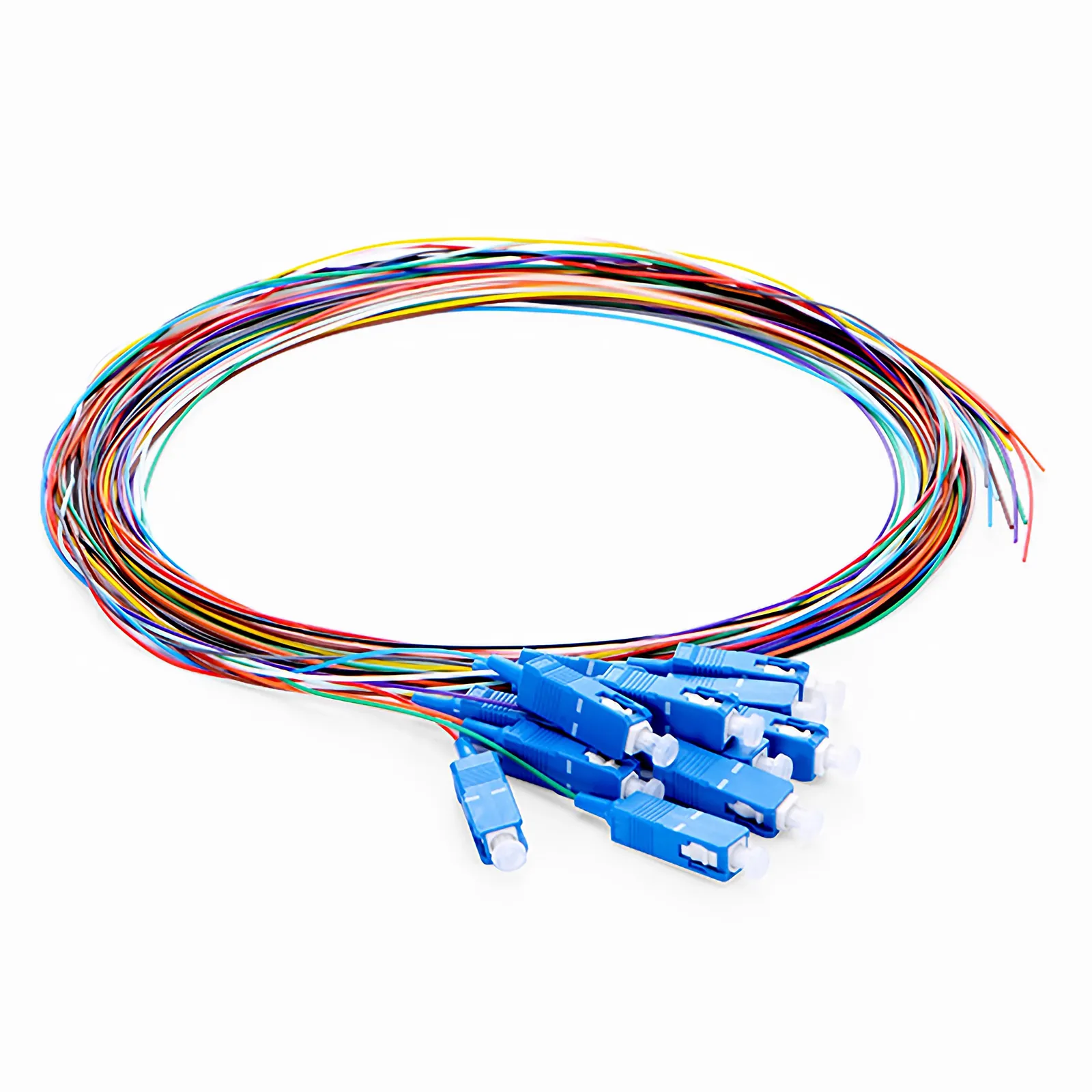

Custom 12-Fiber Color-Coded Pigtails
Streamline your fusion splicing in high-density Optical Distribution Frames (ODFs) and patch panels. Our 12-fiber pigtails follow standard TIA/EIA color codes for rapid identification and error-free routing. Available in single-mode (OS2) and multi-mode (OM3/OM4/OM5) variations, ensuring minimal insertion loss for core network deployments.

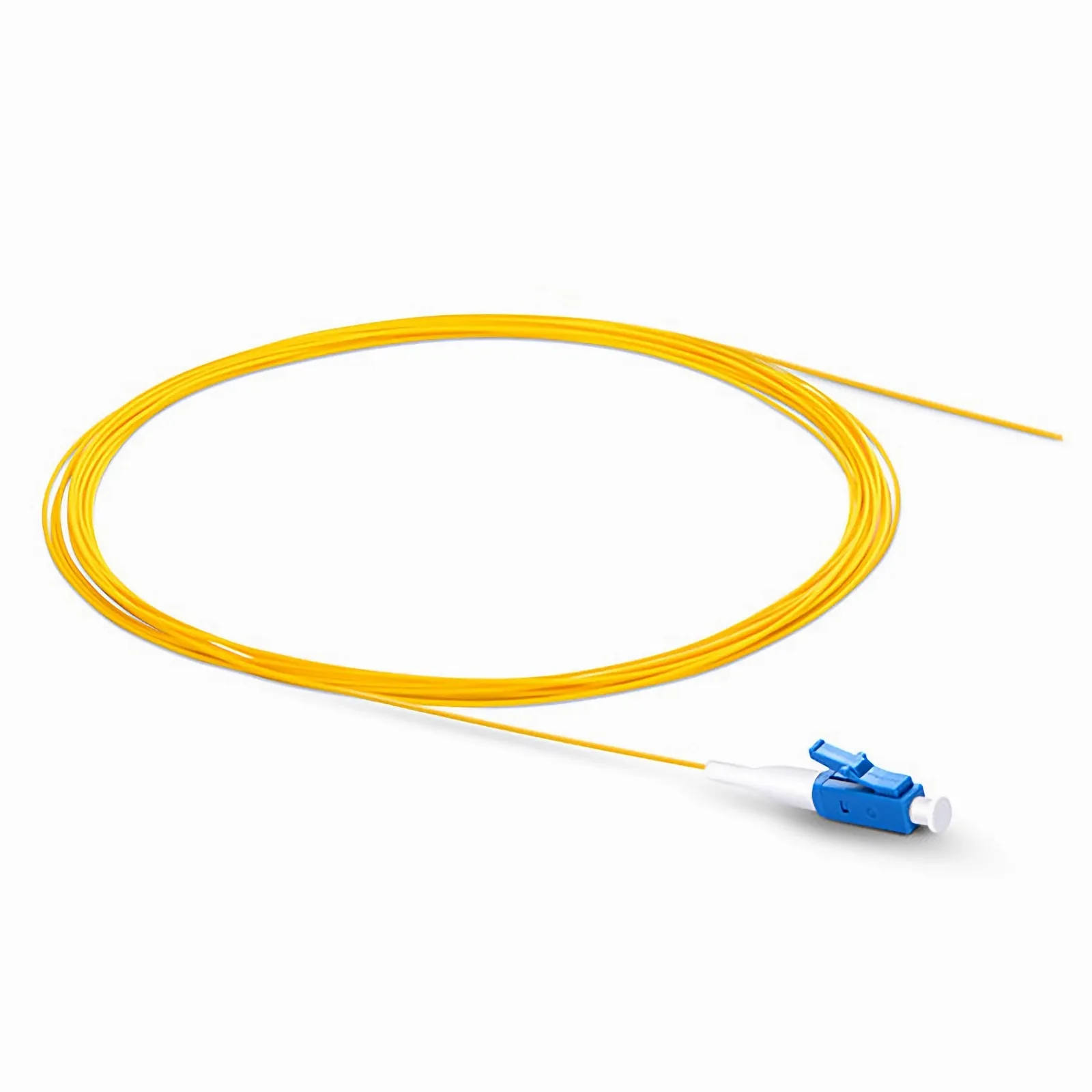

Custom Standard Simplex Fiber Pigtails
The robust and reliable foundation for single-fiber terminations. Factory-polished with SC, LC, FC, or ST connectors, these simplex pigtails feature premium tight-buffered 900µm or 2.0mm/3.0mm jacketing. Ideal for FTTH drop points, enterprise LANs, and standard equipment patching where durable, single-link connectivity is required.

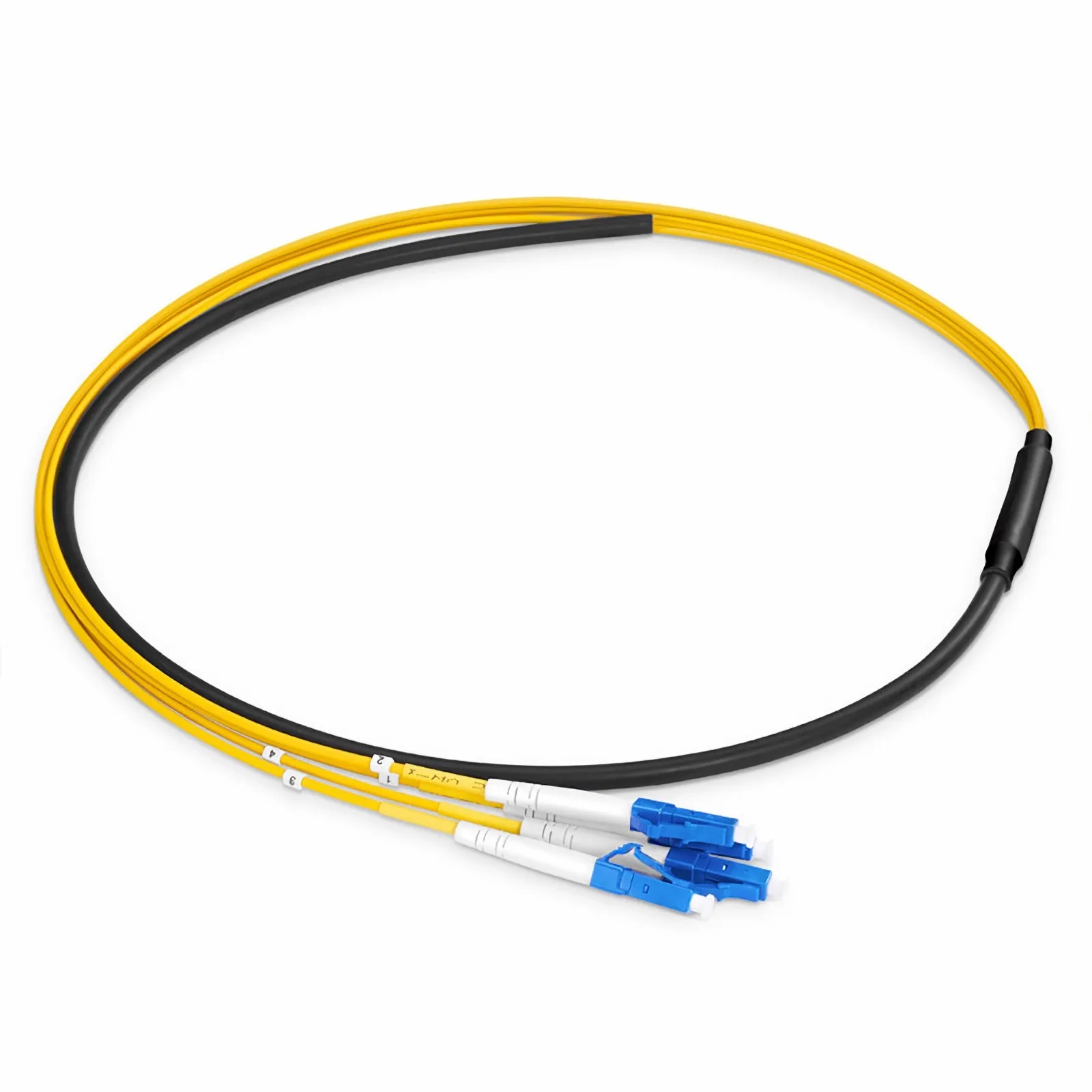

Custom Fiber Pigtail Assemblies
Complex network architectures demand tailored physical layer solutions. Leveraging the flexible production capacity across our three specialized manufacturing plants, we engineer bespoke pigtails to your exact specifications. Choose your specific jacket materials (LSZH/PVC), precise cable lengths, specialized connector end-faces (APC/UPC), and unique buffering options for specialized industrial or telecom applications.
Request Custom Quote
Your Trusted Global Fiber Partner
WolonFiber: Direct OEM/ODM Factory for Premium Fiber Optic Pigtails
As a leading direct optical manufacturer in Wuhan, we provide end-to-end OEM and ODM services tailored for global telecom operators and FTTx deployments. Supported by our 3 specialized facilities and a dedicated workforce of 400-500 industry experts, we transform your demanding fusion splicing requirements into reliable, ultra-low loss fiber optic pigtails ready for immediate field deployment.
100% 3D Geometry Tested
Flawless splicing guaranteed. Every single SC, LC, FC, and ST pigtail undergoes rigorous 3D interferometer testing for Apex Offset, Radius of Curvature, and Fiber Height, alongside strict Insertion Loss (IL) and Return Loss (RL) optical validation.
Mass Production Agility
With advanced automated polishing machines across our manufacturing floors, we effortlessly scale up production for massive telecom rollouts. We deliver perfectly polished UPC and APC 12-core colored bundles with industry-leading lead times.
Bespoke OEM Private Labeling
Elevate your brand in the ODF network. We offer complete OEM customization including custom printed jacket labels, specific color-coding (LSZH/PVC), exact stripping lengths, and branded zip-bag or blister packaging tailored to your exact enterprise identity.
Your 4-Step Path to Custom Pigtail Deployment
Consultation
Align on connector types (LC/SC/FC/ST), fiber grades (G.652.D, G.657.A1/A2, OM3/OM4), lengths, and jacket materials.
Prototyping
Fast-track sample production featuring precise end-face polishing and strict laboratory optical performance validation.
Mass Production
High-volume automated termination executed in our cleanrooms, ensuring absolute optical consistency for large telecom tenders.
Global Logistics
Secure customized packaging and expedited, fully-tracked delivery to distribution partners across 80+ countries.
Ultimate Fiber Optic Pigtail Customization
Tired of high insertion loss or rigid vendor specs? WolonFiber offers end-to-end OEM/ODM manufacturing tailored for your mission-critical Optical Distribution Frames (ODF) and FTTH fiber networks.
Need Custom Fiber Pigtails in Bulk?
Submit your exact connector type, fiber grade, and length requirements to our engineers. Benefit from direct factory pricing, strict QC, and rapid global delivery straight from our 3 specialized facilities.
Request a Custom QuoteBuying Guide: Choosing the Right Fiber Optic Pigtails
Terminating your backbone fiber cables requires flawless optical connectivity. Whether you are splicing inside a high-density ODF (Optical Distribution Frame) or finalizing an FTTH customer drop box, selecting the correct pre-polished fiber optic pigtails is critical for achieving ultra-low insertion loss and minimizing maintenance.
1. Single-Mode (OS2) vs. Multimode (OM3/OM4)
Match your existing network cable. Choose Single-Mode (9/125µm) pigtails for long-haul telecom, CATV, and FTTH networks. For enterprise local area networks (LAN) and short-reach data center server links, select Multimode (50/125µm) pigtails designed for VCSEL laser transmission.
2. UPC (Blue) vs. APC (Green) Polish
Ferrule polishing directly impacts Return Loss (RL). Standard UPC (Ultra Physical Contact) provides excellent performance for regular data networks. However, for FTTx/PON systems and video (CATV) signals that are highly sensitive to back-reflections, the 8-degree angled APC (Angled Physical Contact) is mandatory.
3. The Importance of Bend-Insensitive Fiber
When splicing inside confined splice closures or small FTTH wall outlets, standard G.652.D fiber can experience macro-bending loss. We highly recommend specifying G.657.A1 or G.657.A2 bend-insensitive fiber cores for your pigtails, ensuring signal integrity even when wrapped tightly in splicing cassettes.
4. 0.9mm vs. Thicker Jackets
Select the jacket diameter based on your hardware. For internal fusion splicing within an ODF or splice tray, the ultra-thin 0.9mm easy-strip buffer is the standard choice. If the pigtail will be routed outside a protective cassette, thicker 2.0mm or 3.0mm jackets offer essential mechanical protection.
5. Utilizing 12-Color Pigtail Packs
Managing high-core-count cables can be chaotic. WolonFiber provides 4, 6, 8, and 12-core bundled pigtails colored strictly according to TIA/EIA-598 standards (Blue, Orange, Green, Brown, etc.). This visually intuitive system drastically speeds up field splicing and eliminates port mapping errors.
6. Factory-Polished vs. Field Termination
While field polishing is possible, it is time-consuming and inconsistent. Our factory-terminated pigtails are manufactured in cleanrooms with automated polishing machines, guaranteeing Insertion Loss ≤ 0.2dB. Pre-polished pigtails ensure you only need to perform a simple fusion splice in the field.
Fiber Optic Pigtails FAQ
Expert answers on fusion splicing, color codes, and custom pigtail configurations directly from our optical manufacturing team.
What is the exact difference between a fiber pigtail and a patch cord?
Patch Cords: Have connectors on both ends and are used for plugging directly into active equipment or patching between two terminated ports.
Why should I use 12-Fiber Color-Coded Pigtails?
Should I choose UPC or APC polish for my pigtail connectors?
APC (Angled Physical Contact, Green): Features an 8-degree angled end-face that drastically minimizes back-reflection (Return Loss). APC is strictly required for FTTx/PON architectures, analog video (CATV), and high-bandwidth, long-haul transmission systems.
Can WolonFiber manufacture custom pigtail assemblies?
How do you ensure the optical performance and splicing quality of your pigtails?
